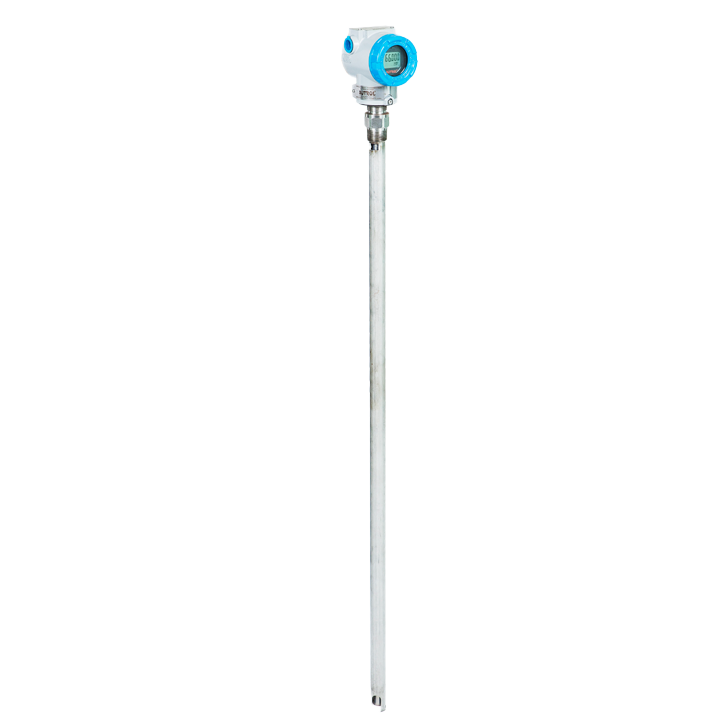

ALT6600
Function
- Type
- Contacted type Level Transmitter
- Certificate
- Ex d, KCS, CE, Rohs, IP66
- Feature
- PVC coating
- Range
- 0.15 to 4 meter
- Technology
- Capacitance
- Applicable condition
- Max 20 bar in Tank up to 100 deg C Sticky, Corrosive, no Foam, Not able to calibrate at the application
- Point Feature
- Sticky(High Viscosity)/ Liquid/ Solid application
- Model Name ALT6600
- Protocol Digital Communication, HART
- Trim ability Zero
- Power supply & Load Requirement 250 to 550 ohm @ 24 Vdc, Loop Powered
- Falure Mode Low ≤ 3.78 mA, High ≥ 21.1 mA
- External Buttons Zero & Span 2 buttons for device configuration
- Process Temp. limit -40 to 80℃ ( -104 to 176℉ )
- Accuracy ± 0.5% of Full Scale
