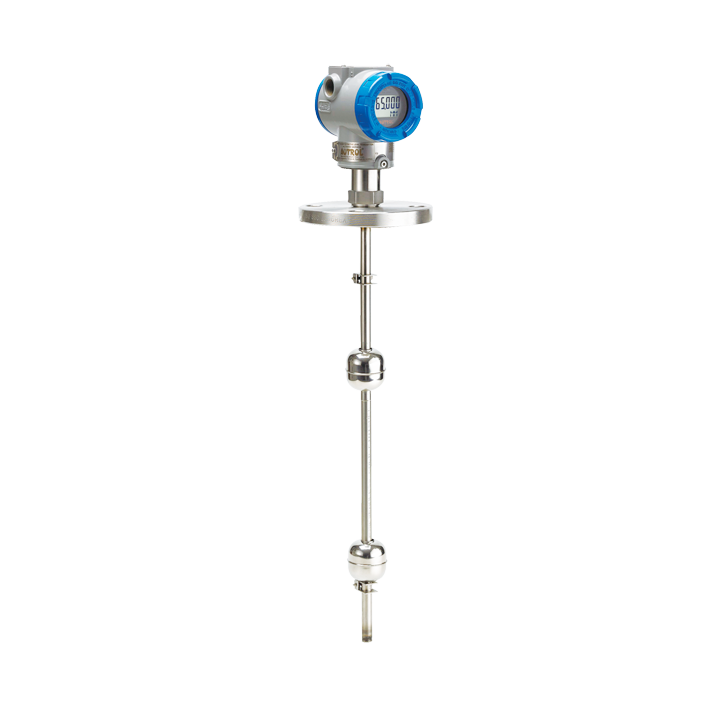

ALT6500
Function
- Type
- Contacted type Level Transmitter
- Certificate
- KCs, IP66 (Ex d)
- Feature
- Interface
- Range
- 4 meter
- Technology
- Magnetostrictive
- Applicable condition
- No Foam, No Sticky, No Sludge, No Vacuum Max 20 bar in Tank up to 100 deg C
- Point Feature
- High Resolution
- Model Name ALT6500
- Protocol Digital Communication, HART
- Trim ability Zero, DAC, FULL
- Power supply & Load Requirement 250 to 550 ohm @ 24 Vdc, Loop Powered
- Falure Mode Low ≤ 3.78 mA, High ≥ 21.1 mA
- External Buttons Zero & Span 2 buttons for device configuration
- Process Temp. limit -40 to 80℃ ( -104 to 176℉ )
- Accuracy ± 1 mm or ± 0.01 % of CS whichever is greater
ALT6500 Catalogue
DOWNLOADKCs Ex d
DOWNLOADALT6500 OUTLINE Drawing
DOWNLOAD
