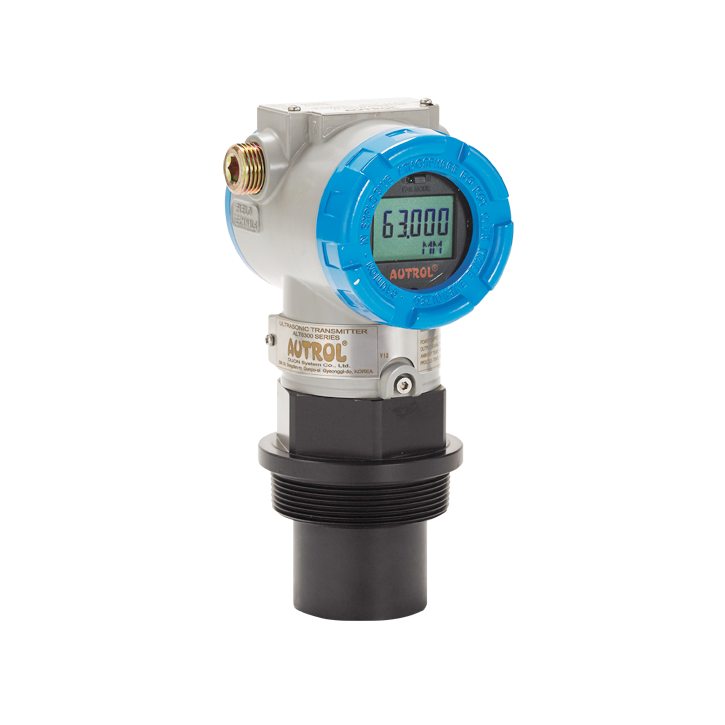

ALT6300
Function
- Type
- Non Contacted type Level Transmitter
- Certificate
- CE, Rohs, IP66/67
- Feature
- Extension up to 600 mm
- Range
- 5 meter (Optional 10 meter)
- Technology
- Ultrasonic
- Applicable condition
- No Noise, simple tank, High Viscosity, No Pressure
- Point Feature
- Competitive Price
- Model Name ALT6300
- Protocol Digital Communication, HART
- Trim ability Zero, DAC, FULL
- Power supply & Load Requirement 250 to 340 ohm @ 24 Vdc, Loop Powered
- Falure Mode Low ≤ 3.78 mA, High ≥ 21.1 mA
- External Buttons Zero & Span 2 buttons for device configuration
- Process Temp. limit -20 to 80℃ ( -4 to 176℉ )
- Accuracy ± 10 mm
ALT6300 Catalogue
DOWNLOADALT6300 OUTLINE Drawing
DOWNLOAD
