ALT6210
Function
- Type
- Non Contacted type Level Transmitter
- Certificate
- CE, Rohs, IP66/67
- Feature

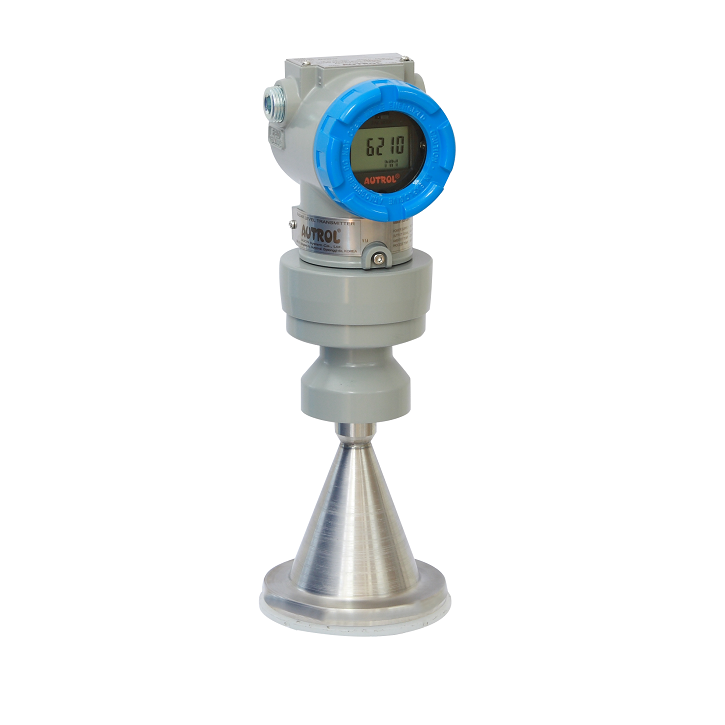

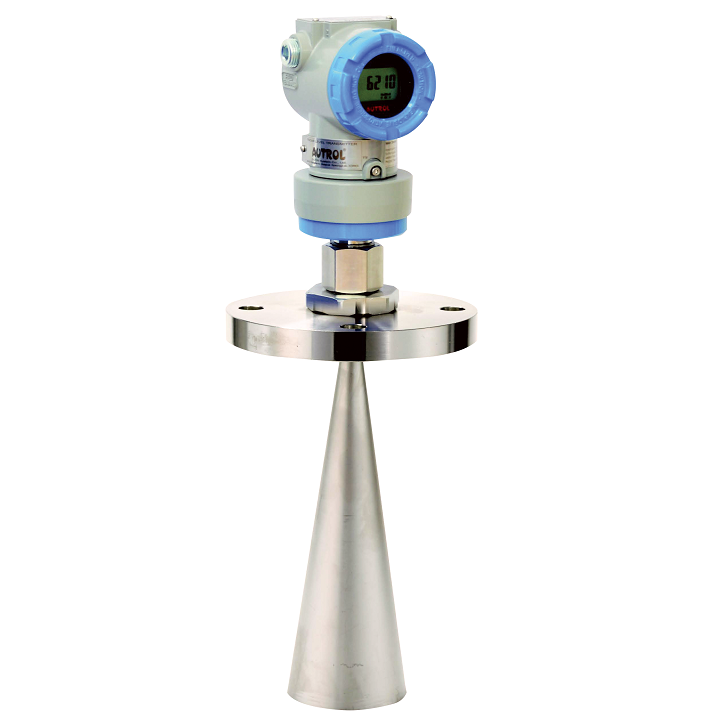

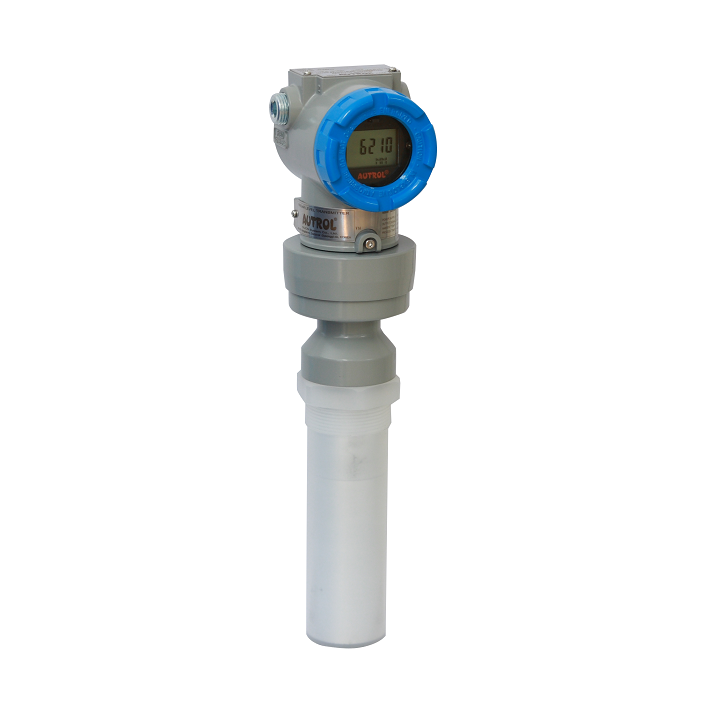

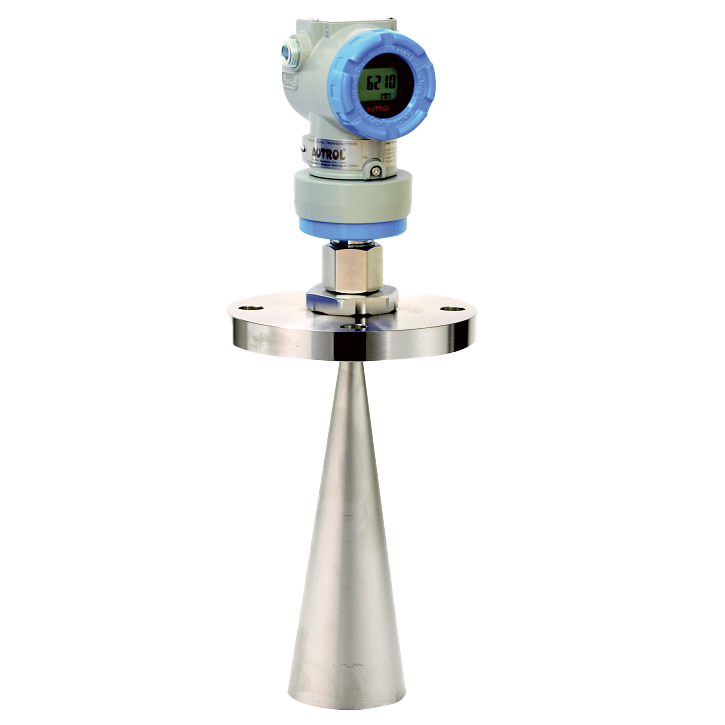

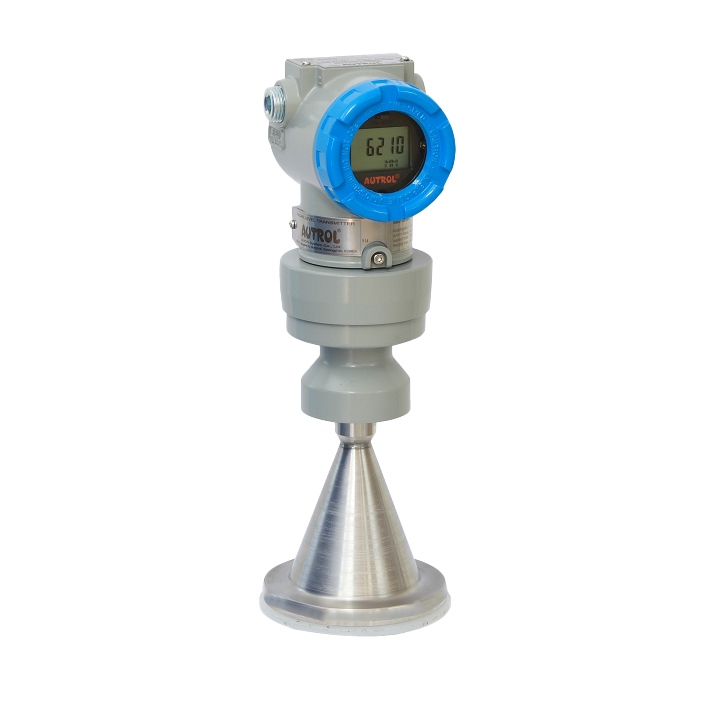

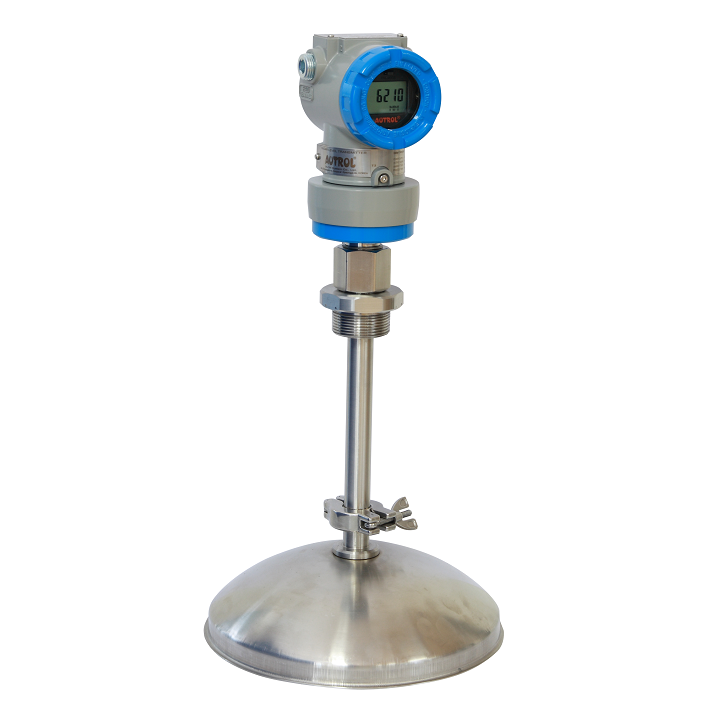

- Horn ANT 2 ~ 4 inch, SEAL ANT 3, 4 inch, Encapsule ANT, Parabolic ANT
- Range
- 0.5 to 30 meter (Optional 70 meter)
- Technology
- Pulse RADAR by 26 GHz
- Applicable condition
- Less Wave, Noise, High Viscosity, Foam
- Point Feature
- Narrow & Straight Beam Angle (10°)
- Model Name ALT6210
- Protocol Digital Communication, HART
- Trim ability Zero, DAC, FULL
- Power supply & Load Requirement 250 to 360 ohm @ 24 Vdc, Loop Powered
- Falure Mode Low ≤ 3.78 mA, High ≥ 21.1 mA
- External Buttons Zero & Span 2 buttons for device configuration
- Process Temp. limit -40 to 80℃ ( -104 to 176℉ )
- Accuracy ± 3 mm
ALT6210 OUTLINE Drawing
